Introduction to Hydraulic Jumps
Unlock Audio Lesson
Good morning class! Today, we're diving into the fascinating world of hydraulic jumps. Can anyone tell me what a hydraulic jump is?
Is it when water suddenly changes speed in an open channel?
Exactly! A hydraulic jump occurs when water transitions from supercritical flow to subcritical flow, often resulting in turbulence and energy loss. There are three key flow regimes we need to remember: supercritical, critical, and subcritical.
What does supercritical flow mean?
Supercritical flow occurs when the Froude number is greater than one; the flow is fast and shallow. Remember the Froude number, it's a crucial concept in fluid mechanics!
Why is it important to understand these jumps in water flow?
Great question! Understanding hydraulic jumps is essential in engineering design to prevent issues like erosion and instability in structures like dams and spillways. Let's keep these concepts in mind as we explore further.
Energy Considerations in Hydraulic Jumps
Unlock Audio Lesson
Now, let’s dive deeper into energy. Can someone explain why energy loss occurs during a hydraulic jump?
Is it because of turbulence and mixing when the flow changes?
Exactly! As the flow transitions from supercritical to subcritical, energy is lost due to turbulence. We can quantify this energy loss using the specific energy equations. Does anyone remember the specific energy formula?
Yes! It’s the sum of the flow depth and the kinetic energy, expressed as E = y + v²/2g.
Right! The energy at upstream and downstream can be analyzed to determine how much energy is lost during the jump. Remember, energy conservation is key in engineering!
Can you give an example of how this applies in real life?
Certainly! For instance, spillways use hydraulic jumps to dissipate energy safely, preventing damage downstream. It's a crucial design consideration for engineers.

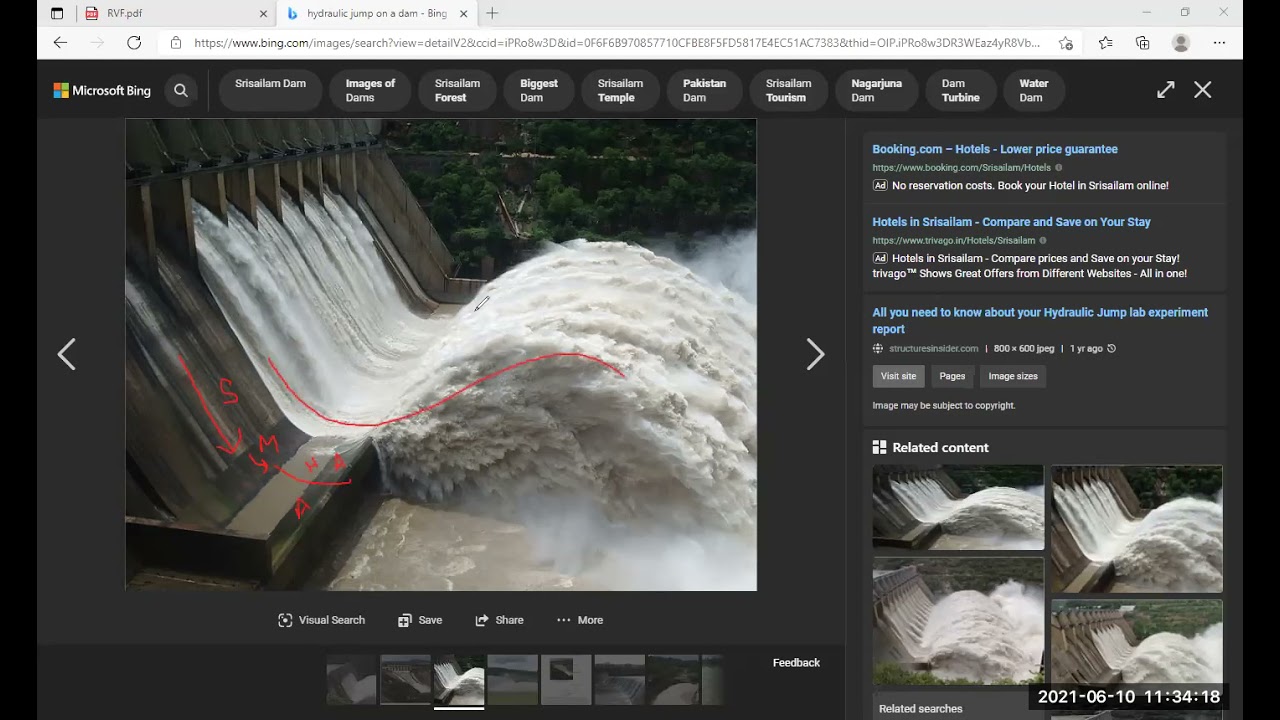

Applications of Hydraulic Jumps in Engineering
Unlock Audio Lesson
Let’s shift gears and talk about applications. What are some practical uses of hydraulic jumps in engineering?
They help mix air into water, right?
Precisely! They're excellent for promoting mixing in treatment plants. Additionally, they help control energy in structures like spillways.
How does that affect design?
Good point! Designers must ensure their structures can handle the energy dissipated during jumps. It affects materials, shapes, and locations. Understanding hydraulic jumps helps us create safer structures.
Quantitative Analysis of Hydraulic Jumps
Unlock Audio Lesson
Now that we’ve looked at applications, let's discuss the analysis of hydraulic jumps. Who remembers how we calculate the Froude number?
I think it's the velocity divided by the speed of surface waves?
Correct! The speed of surface waves can be calculated as √(g*y), where g is acceleration due to gravity. This helps determine flow conditions.
How do we find the downstream conditions after a jump?
We can use mass and momentum conservation equations. By knowing upstream conditions, we can compute downstream velocity and flow depth. It’s all linked through energy!

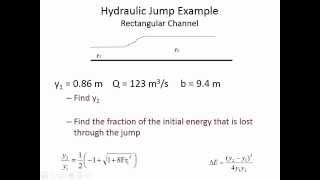

Can you walk us through a calculation example?
Absolutely! Let's say we have a certain inflow condition. We can calculate the Froude number, determine energy levels, and analyze how much energy is dissipated in the jump.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, hydraulic jumps are discussed as essential phenomena in open channel flow, detailing how they occur when supercritical flow (Froude number > 1) transitions to subcritical flow (Froude number < 1). The section explains key concepts such as energy conservation, specific energy, and the graphical representation of these phenomena, along with their implications in engineering design.
Detailed
Hydraulic Jumps
Hydraulic jumps are abrupt changes in flow conditions that occur when the flow of water transitions from a high speed (supercritical) to a low speed (subcritical) condition in an open channel. This section explains the significance of hydraulic jumps in civil engineering, especially in the design of canal structures and hydraulic systems.
Key Concepts:
- Froude Number: A dimensionless number that indicates the flow regime.
- Supercritical flow: Froude number (Fr) > 1
- Critical flow: Froude number (Fr) = 1
- Subcritical flow: Froude number (Fr) < 1
- Specific Energy: It is defined as the energy per unit weight of fluid, expressed as the sum of the potential energy and kinetic energy components. Specific energy can be graphically represented to visualize flow variations.
- Energy Losses: Hydraulic jumps lead to significant energy losses due to turbulence and mixing that occurs during the transition from supercritical to subcritical flow. The energy loss (hL) can be quantified using conservation equations.
- Hydraulic Jump Formation: This phenomenon results in turbulent structures and energy dissipation, vital for enhancing mixing processes in canal designs.
- Design Considerations: Understanding hydraulic jumps assists in designing hydraulic structures like spillways and bridges, ensuring that they can manage transitions effectively without causing erosion or instability.
Overall, hydraulic jumps play a critical role in managing flow conditions in open channel hydraulics and are essential for optimal engineering design.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Hydraulic Jumps
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If you look it that if you have a more or less the horizontal surface okay more or less you have a horizontal surface and you have a sluice gate okay it is a gate operating it. the flow is coming from this side it has a depth okay. After that you can see that flow will be like a jet flow it will happen like this okay. So this is the gate which is we are operating this is what a gate the flow is coming from this side and going out. So we can see that the typically it will have a jet type of flow the flow will be move like a jet type of flow okay.
Detailed Explanation
In the context of hydraulic jumps, we first visualize a horizontal surface with a sluice gate. When water flows through this gate, it creates a jet-like flow. The gate controls the outflow of water, and as it opens, the water flows with a certain depth and velocity.
Examples & Analogies
Think of a garden hose. When you cover the end with your thumb, the water sprays out in a powerful jet when released. The sluice gate works similarly, controlling the flow and creating a strong jet of water.
Conservation of Mass in Fluid Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So I can write it rho v1 y1 and b is a perpendicular depth or the width is equal to rho v2 y2 and b. So b be cancelled out rho as an incompressible flow and the steady flow. So we have a v1 y1 is equal to v2 y2.
Detailed Explanation
This expression represents the principle of conservation of mass for incompressible fluid flow. It states that the mass flow rate before the gate (v1, y1) is equal to the mass flow rate after the gate (v2, y2). As a result, if the outlet depth (y2) decreases, the velocity (v2) increases to maintain this balance.
Examples & Analogies
Consider a funnel. When you pour liquid into the wide opening, the liquid moves slowly, but once it reaches the narrower opening, it speeds up significantly. This is similar to how flow characteristics change at the sluice gate.
Understanding Subcritical, Critical, and Supercritical Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We have a very the critical flow which will have a the flow proud number is equal to 1 that is the conditions we have when you have a the critical flow that means the flow proud number is equal to 1. Physically if you try to understand it the velocity of the flow is equal to the speed of the surface wave that is what we did it then we have super critical flow where the flow proud numbers is greater than 1.
Detailed Explanation
Flow is categorized into three types: subcritical, critical, and supercritical. In subcritical flow (Froude number < 1), the flow is slow and waves propagate upstream. Critical flow occurs when the Froude number equals 1, meaning flow velocity matches wave speed. Supercritical flow (Froude number > 1) is characterized by fast-moving water where the speed exceeds wave speed.
Examples & Analogies
Imagine a river with varying speeds. In calm areas (subcritical flow), you can see waves moving upstream as disturbances. At a narrow section (critical flow), the water flows fast, matching the wave speed. In rapid areas (supercritical flow), the water rushes by like a roller coaster descending a steep slope.
Formation of Hydraulic Jumps
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When the flow passes through the supercritical to subcritical with a very limited ranges then there are a lot of turbulent structures created okay.
Detailed Explanation
A hydraulic jump occurs when water transitions from supercritical to subcritical flow, causing turbulence. This transition creates a sudden increase in flow depth and a significant drop in velocity, resulting in energy loss and turbulence. This phenomenon is crucial in channel design as it dissipates excess energy.
Examples & Analogies
Picture a steep waterfall; the water moves quickly at the top but slows down dramatically when it hits the calm pool below. This sudden change in flow speed and depth illustrates a hydraulic jump, creating splashes and turbulence.
Analyzing Hydraulic Jumps
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So if you look at the problems what we are talking about we can always look at that how the things are happening it at this point okay.
Detailed Explanation
To analyze hydraulic jumps, one must understand the upstream conditions (flow depth, velocity) and the downstream effects post-jump. Using conservation equations and energy principles, we can derive relationships to compute energy losses and flow characteristics after the jump.
Examples & Analogies
Think of a river flowing over a small ledge into a deeper pool. If you wanted to measure the speed of water before and after the jump, you would record how fast it flows above the ledge and compare it to how it behaves in the pool – this illustrates how hydraulic jumps can be analyzed in terms of speed and depth.

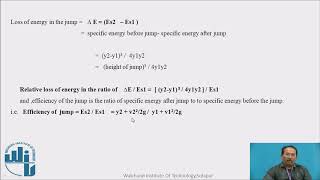

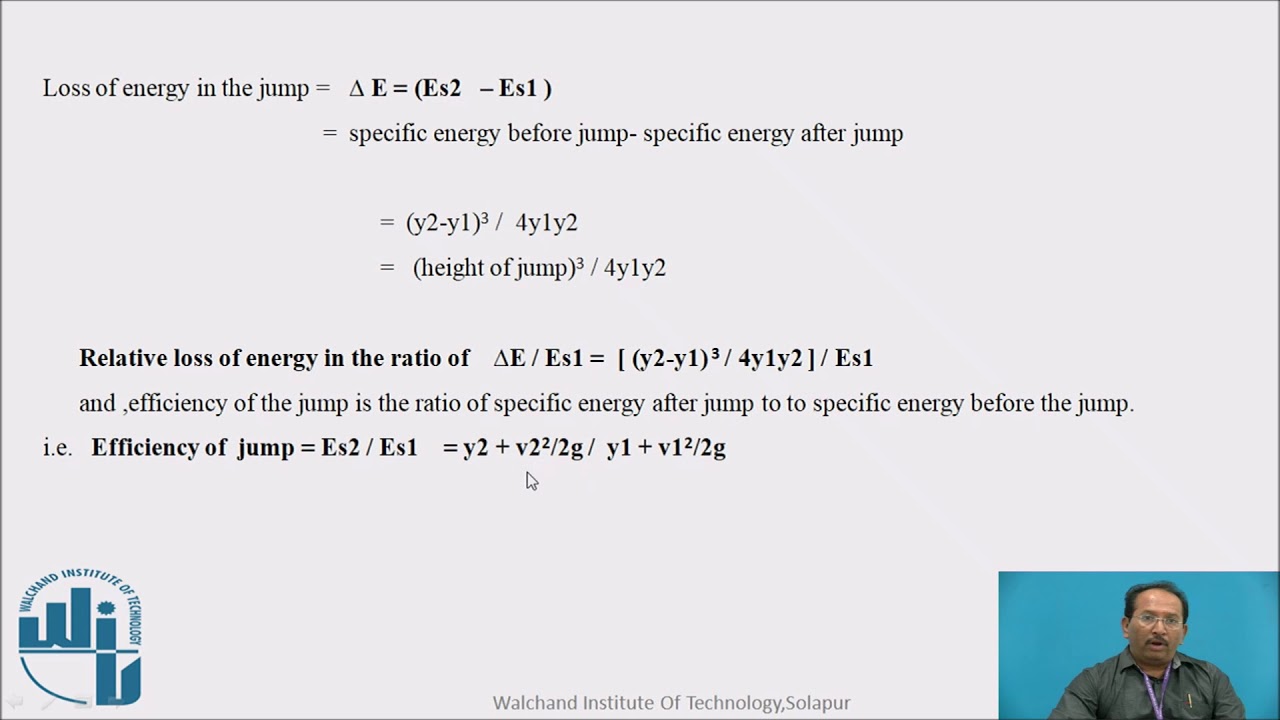

Energy Loss in Hydraulic Jumps
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Energy losses happens it when flow goes through the supercritical please remember supercritical to subcritical.
Detailed Explanation
During hydraulic jumps, energy is lost due to turbulence and the chaotic flow patterns that develop as the water transitions from fast-moving to slower, deeper flow. This loss can be quantified to inform engineering designs.
Examples & Analogies
Similar to how energy dissipates when a car hits a speed bump and bounces, resulting in a loss of kinetic energy, water also loses energy as it transitions through a hydraulic jump.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Froude Number: A dimensionless number that indicates the flow regime.
-
Supercritical flow: Froude number (Fr) > 1
-
Critical flow: Froude number (Fr) = 1
-
Subcritical flow: Froude number (Fr) < 1
-
Specific Energy: It is defined as the energy per unit weight of fluid, expressed as the sum of the potential energy and kinetic energy components. Specific energy can be graphically represented to visualize flow variations.
-
Energy Losses: Hydraulic jumps lead to significant energy losses due to turbulence and mixing that occurs during the transition from supercritical to subcritical flow. The energy loss (hL) can be quantified using conservation equations.
-
Hydraulic Jump Formation: This phenomenon results in turbulent structures and energy dissipation, vital for enhancing mixing processes in canal designs.
-
Design Considerations: Understanding hydraulic jumps assists in designing hydraulic structures like spillways and bridges, ensuring that they can manage transitions effectively without causing erosion or instability.
-
Overall, hydraulic jumps play a critical role in managing flow conditions in open channel hydraulics and are essential for optimal engineering design.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Spillways utilize hydraulic jumps to dissipate energy safely and prevent downstream erosion.
-
In sewage treatment plants, hydraulic jumps promote air-water mixing, enhancing biological treatment processes.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When flows collide, a jump will ride; Super to sub is how they glide.
📖 Fascinating Stories
-
Imagine a river rushing fast, hitting a rock, and slowing at last. This is a hydraulic jump, where speed decreases, and turbulence increases.
🧠 Other Memory Gems
-
Remember 'FSS' for Froude, Supercritical, Subcritical flow states.
🎯 Super Acronyms
Use the acronym 'HJS' to remember Hydraulic Jump Significance
- mixing
- stability
- and energy management.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Hydraulic Jump
Definition:
A phenomenon in open channel flow where water transitions from supercritical to subcritical flow, resulting in turbulence and energy loss.
-
Term: Froude Number
Definition:
A dimensionless number representing the ratio of inertial forces to gravitational forces in fluid flow, indicating flow regime.
-
Term: Specific Energy
Definition:
The total mechanical energy per unit weight of fluid, comprising kinetic and potential energy contributions.
-
Term: Energy Loss
Definition:
The loss of mechanical energy due to turbulence and friction as fluid flows through a hydraulic jump.
-
Term: Supercritical Flow
Definition:
A high-velocity, shallow flow condition characterized by a Froude number greater than one.
-
Term: Subcritical Flow
Definition:
A low-velocity, deeper flow condition characterized by a Froude number less than one.
-
Term: Turbulence
Definition:
The irregular or chaotic state of fluid flow, contributing to energy loss and mixing.
