Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Hydraulic Jump
Unlock Audio Lesson
Good morning, everyone! Today we’re diving into hydraulic jumps, which are critical in understanding energy losses in open channel flow. Who can tell me what happens at a hydraulic jump?
A hydraulic jump occurs when water transitions from supercritical to subcritical flow, right?
Exactly! In simple terms, supercritical flow is faster and shallower, while subcritical flow is slower and deeper. Can you remember the Froude numbers for these flows?
Yes! Subcritical flow has a Froude number less than 1, critical flow is equal to 1, and supercritical is greater than 1.
Great job! Remembering Froude numbers can be summarized as 'S<1, C=1, S>1' for easy recall. Let’s explore why these transitions matter in real-world engineering.
Energy Loss Calculation
Unlock Audio Lesson
Now, let's talk about calculating energy losses. What is the formula we often use to express energy loss during a hydraulic jump?
Isn’t it the difference in specific energy between upstream and downstream? E1 = E2 + hL?
Exactly! The energy loss, hL, reflects how much energy dissipates due to turbulence during transitions. Can someone remind me what specific energy comprises?
Specific energy is the sum of flow depth and velocity head, E = y + (v^2 / 2g).
Perfect! Remember, understanding these calculations helps in designing appropriate structures to manage energy losses effectively.
Practical Implication of Energy Losses
Unlock Audio Lesson
Finally, let's discuss why we care about hydraulic jumps in civil engineering. How do they affect canal design?
Hydraulic jumps can cause erosive forces downstream if not managed, which might lead to structural damage.
They can also help in mixing chemicals in wastewater treatment by creating turbulence.
You’re both right! Managing hydraulic jumps is vital for preventing erosion and promoting effective mixing. Remember: 'Safe and efficient design, minimize the hydraulic jump line.' It’s a great mnemonic!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Energy losses in open channel flow are primarily caused by hydraulic jumps, which occur during transitions between supercritical and subcritical flow. This section explains the principles of energy conservation, specific energy, and introduces the concept of hydraulic jumps, detailing their impact on energy loss in civil engineering applications.
Detailed
Energy Losses in Open Channel Flow
In open channel flow, energy losses occur due to hydraulic jumps, which are transitions between subcritical and supercritical flow. This section elaborates on the fundamental principles governing these phenomena, emphasizing the conservation of mass and energy equations that facilitate the understanding of flow behavior.
Key Concepts:
The flow can be characterized as:
- Subcritical Flow: Occurs when the Froude number is less than 1, allowing waves to propagate upstream and downstream.
- Critical Flow: When the Froude number equals 1, indicating that the flow velocity matches the speed of surface waves.
- Supercritical Flow: Occurs when the Froude number exceeds 1, characterized by high velocity and low flow depth.
Hydraulic Jumps
Hydraulic jumps indicate significant energy losses as the flow transitions from supercritical to subcritical conditions. These jumps are marked by turbulence and mixing, often visible downstream of sluice gates and spillways.
Mathematical Formulation
Energy losses can be quantified using:
- The principle of conservation of energy, where the energy loss due to hydraulic jumps ( hL) is calculated as the difference between upstream and downstream specific energies.
Significance in Civil Engineering
In designing canal structures and spillways, understanding and managing energy losses due to hydraulic jumps is crucial for ensuring structural integrity and effective flow management.
Youtube Videos

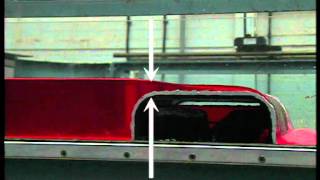

![Open Channel Flow - 23 [Concept of Specific energy, conditions of critical flow, Froude number]](https://img.youtube.com/vi/rzVDDrE9UpU/mqdefault.jpg)
![Open channel flow - 3 [velocity distribution, isovels, energy & momentum correction factors]](https://img.youtube.com/vi/0FBI5ntzKq4/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Energy Losses
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The basic idea to know it, the flow depth variations in open channels, the velocity variations, how the velocity changes it, how much of energy losses, okay. losses is happening it because of the flow and mostly it is governed by the gravity forces and the frictional forces as I discussed earlier. So we have just two force component the gravity force and frictional force component.
Detailed Explanation
In open channel flow, energy losses occur due to variations in flow depth and flow velocity. The key forces at play are gravity, which drives the flow, and friction, which opposes it. When water moves through a channel, it loses energy mainly because of friction with the channel's sides and bottom, and because of changes in velocity and elevation. Understanding these losses is crucial for engineering applications such as designing canals and other structures that manage water flow.
Examples & Analogies
Imagine sliding down a water slide. As you slide, gravity pulls you down, but you also feel the water slowing you down because of friction with the slide's surface. Similarly, in open channel flow, gravity helps the water move, but friction from the channel surface slows it down, causing energy losses.
Types of Flow: Subcritical, Critical, and Supercritical
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When you talk about a open channel flow... we will have a very the critical flow which will have a the flow proud number is equal to 1 that is the conditions we have when you have a the critical flow that means the flow proud number is equal to 1.
Detailed Explanation
In open channel flow, three distinct flow types are defined by the Froude number, a dimensionless number that indicates the flow regime. Subcritical flow (Froude number less than 1) is slow and stable, critical flow (Froude number equal to 1) occurs at specific balance conditions, while supercritical flow (Froude number greater than 1) is rapid and unstable. Understanding these flow types is important because they influence the design of hydraulic structures and the prediction of water behavior in channels.
Examples & Analogies
Think of a river: when it's flowing gently, it's like subcritical flow where everything is calm. When it's at its peak flow during a flood, it resembles supercritical flow—fast and potentially destructive. The critical flow is like a careful balance point, much like when you balance on the edge of a boat—steady but ready to tip one way or the other.
Hydraulic Jumps and Energy Losses
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When the flow passes through the supercritical to subcritical with a very limited ranges then there are a lot of turbulent structures created okay. There are a lot of mixings, the turbulent structures are necessary... the hydraulic jump create a lot of turbulence structures.
Detailed Explanation
A hydraulic jump occurs when water flows from a supercritical state to a subcritical state, resulting in a sudden increase in water depth and a decrease in velocity. This transition causes turbulence, mixing, and energy loss due to the chaotic flow patterns created. Engineers study hydraulic jumps to design structures that can manage the energy dissipated during this transition and prevent erosion or structural damage downstream.
Examples & Analogies
Imagine a water slide that dumps you into a pool. If you enter the pool too fast, you'll cause a big splash and turbulence as you hit the water. Similarly, when fast-moving water jumps into a slower moving section, it creates turbulence and energy loss, just like your splash in the pool.
Calculating Energy Losses in Hydraulic Jumps
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Energy losses due to the hydraulic jump is hL okay energy losses due to the hydraulic jump is hL. So very easily I can write it energy conservation E1 is equal to E2 plus hL.
Detailed Explanation
When analyzing hydraulic jumps, engineers utilize energy conservation principles. The energy upstream (E1) is equal to the energy downstream (E2) plus the energy lost (hL) during the jump. This relationship allows engineers to calculate how much energy is lost when water transitions from a higher energy state to a lower energy state, which is essential for designing effective hydraulic structures.
Examples & Analogies
Imagine pouring water from a high fountain into a pool. Some energy is lost as splashes and turbulence at the pool's surface. Similarly, when water jumps from rapid flow (supercritical) to slower flow (subcritical), some energy is inevitably lost, which we can calculate and accommodate in our designs.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
The flow can be characterized as:
-
Subcritical Flow: Occurs when the Froude number is less than 1, allowing waves to propagate upstream and downstream.
-
Critical Flow: When the Froude number equals 1, indicating that the flow velocity matches the speed of surface waves.
-
Supercritical Flow: Occurs when the Froude number exceeds 1, characterized by high velocity and low flow depth.
-
Hydraulic Jumps
-
Hydraulic jumps indicate significant energy losses as the flow transitions from supercritical to subcritical conditions. These jumps are marked by turbulence and mixing, often visible downstream of sluice gates and spillways.
-
Mathematical Formulation
-
Energy losses can be quantified using:
-
The principle of conservation of energy, where the energy loss due to hydraulic jumps ( hL) is calculated as the difference between upstream and downstream specific energies.
-
Significance in Civil Engineering
-
In designing canal structures and spillways, understanding and managing energy losses due to hydraulic jumps is crucial for ensuring structural integrity and effective flow management.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example 1: Calculating energy loss in a hydraulic jump given specific flow parameters.
-
Example 2: Designing a canal to manage hydraulic jumps effectively.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In channels wide and deep, flows can leap, from fast to slow, where energy we keep.
📖 Fascinating Stories
-
Once, a river raced down a steep slope, rushing super fast. It hit a bump and suddenly jumped, slowing down yet swirling with hope.
🧠 Other Memory Gems
-
For flow types: S<1 (Sub), C=1 (Critical), S>1 (Super). 'Silly Cats Swim' to recall!
🎯 Super Acronyms
FSC
- Flow State Classification - F for Froude
- S: for subcritical
- C: for critical.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Hydraulic Jump
Definition:
A phenomenon occurring when a fluid transitions from a high-velocity (supercritical) state to a lower-velocity (subcritical) state, resulting in turbulence and energy loss.
-
Term: Froude Number
Definition:
A dimensionless number that compares flow inertia to gravitational forces, indicating the state of flow as subcritical, critical, or supercritical.
-
Term: Specific Energy
Definition:
The total mechanical energy per unit weight of fluid, calculated as the sum of flow depth and velocity head.
-
Term: Energy Loss (hL)
Definition:
The amount of energy dissipated as water flows through a hydraulic jump, quantifying the difference in specific energy between two points.
