Introduction to Open Channel Flow
Unlock Audio Lesson
Good morning, everyone. Today, we will start by discussing the fundamental principles of open channel flow. Can anyone tell me what defines open channel flow?
Is it flow in channels where the fluid surface is open to the atmosphere?
Exactly! Now, the behavior of this flow can be examined through specific energy. Can anyone define what specific energy means?
Isn’t it the total mechanical energy per unit weight of the fluid?
Correct! It’s essential for analyzing flow characteristics. To help remember this, think of the acronym 'E=' for Energy, discussing how energy relates to flow depth.
Froude Number and Flow Regimes
Unlock Audio Lesson
Now, let’s talk about the Froude number. Who can explain how it is calculated and what it indicates?
The Froude number is calculated by dividing the flow velocity by the wave speed, right? It indicates the flow regime.
Exactly! A Froude number less than 1 indicates subcritical flow, greater indicates supercritical flow. A good way to remember this is the phrase, 'Froude Flows'—it rhymes, and the flow values follow!
Why is it important to know the type of flow?
Great question! Knowing the flow type helps predict behavior when transitioning from supercritical to subcritical states.
Hydraulic Jumps
Unlock Audio Lesson
Let’s discuss hydraulic jumps. Can anyone summarize what happens during a hydraulic jump?
It’s when the flow transitions from supercritical to subcritical, causing turbulence and energy loss.
Correct! They are critical in preventing erosion and ensuring energy dissipation. Remember the mnemonic 'Jumping with Energy' to recall that hydraulic jumps conserve energy!
What impact do they have on channel design?
Hydraulic jumps help design effective channel systems by dictating energy dissipation methods. It’s essential for engineers!
Best Hydraulic Cross Sections
Unlock Audio Lesson
Now, let’s address the design aspect of open channels—best hydraulic cross sections. What shapes are most commonly considered?
Rectangular and trapezoidal shapes, right?
Exactly! The goal is to minimize the wetted perimeter for cost efficiency. Remember the equation for area, which is critical here: A = base * height. This simple abbreviation helps remember it.
How does minimizing the perimeter relate to costs?
Good question! Less perimeter means less construction material, which reduces costs. It creates a better flow capacity too.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section covers open channel flow principles, particularly specific energy concepts and their graphical representation, as well as the nature of hydraulic jumps and their implications for canal structure design. Key elements such as Froude number and energy loss are also discussed.
Detailed
Fluid Mechanics: Open Channel Flow
Detailed Summary
In this section, we explore the principles of open channel flow, highlighting key topics like specific energy and hydraulic jumps.
- Open Channel Flow Basics: Open channel flow deals with the movement of fluids in channels where the surface is open to the atmosphere.
- Specific Energy: This concept relates energy levels to flow depth and is essential in understanding flow behavior. The specific energy is represented graphically, showcasing how flow depth variations affect energy consumption.
- Froude Number: A dimensionless number used to characterize flow regime—subcritical (Fr < 1), critical (Fr = 1), and supercritical (Fr > 1). Understanding the Froude number helps predict flow transition behaviors.
- Hydraulic Jumps: Hydraulic jumps occur when flowing water transitions from supercritical to subcritical state, leading to turbulence and energy loss. These phenomena are critical for civil engineering designs to mitigate energy losses effectively.
- Best Hydraulic Cross Sections: Designing channels with optimal geometric cross-sections minimizes construction costs and maximizes flow efficiency. The section examines ideal channel shapes, drawing relationships between area, perimeter, and hydraulic radius, ultimately focusing on reducing wetted perimeter to minimize construction costs.
- Numerical Problems: Practicing problems related to hydraulic jumps and energy loss calculations further solidifies understanding of practical applications of theory.
In conclusion, the principles discussed shape how fluid mechanics are applied in civil engineering, specifically in designing effective open channels.
Youtube Videos

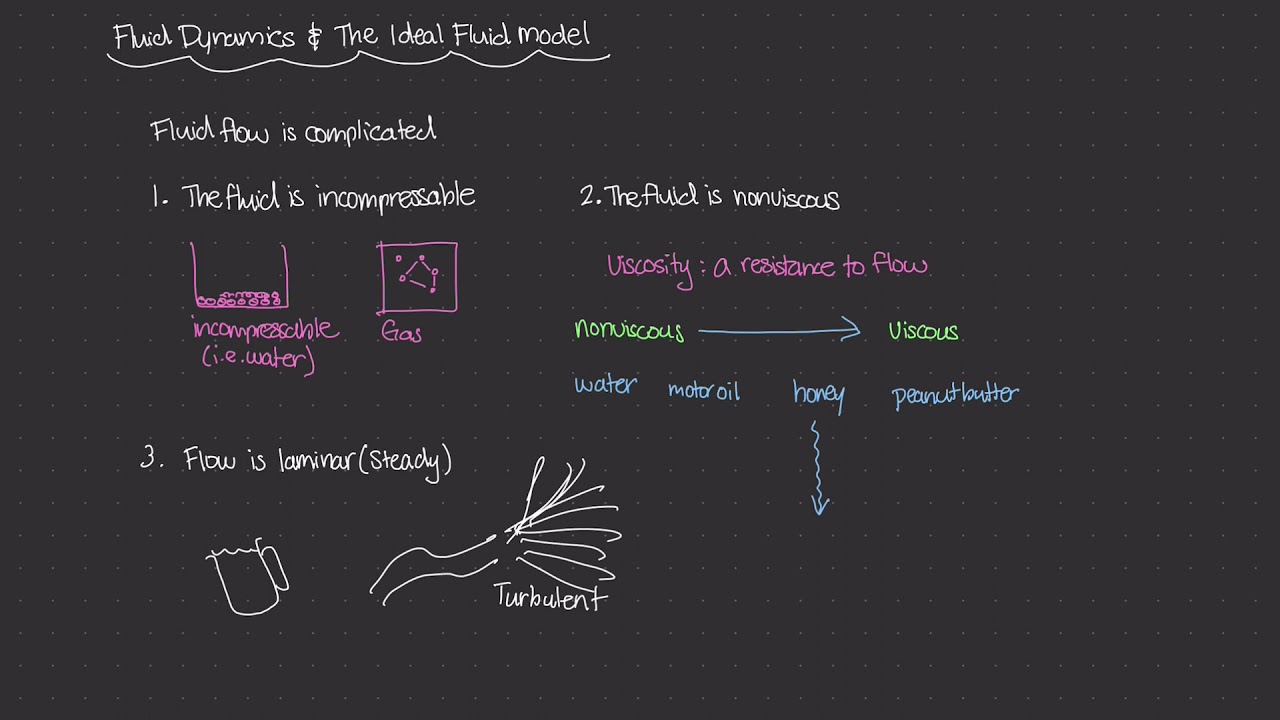

![The Ideal Fluid Model [Physics of Fluid Mechanics #39]](https://img.youtube.com/vi/L8CxMeMR9oc/mqdefault.jpg)
