Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Specific Energy
Unlock Audio Lesson
Today, we're going to discuss specific energy in open channel flows. Specific energy is the total mechanical energy of the fluid per unit weight, which helps us understand how energy changes with flow depth.
How does specific energy relate to flow depth?
Great question! As the flow depth increases, the specific energy may also increase, but beyond a certain point, changes in depth lead to different flow velocities, which can affect energy losses.
So, specific energy is crucial for analyzing energy losses?
Exactly! Understanding specific energy is essential for predicting energy losses in hydraulic structures.
Can you remind us what conditions lead to energy loss?
Energy losses occur particularly during hydraulic jumps and due to friction in the channel.
In summary, specific energy helps us quantify energy behavior in open channel flow and guides our design strategies.
Exploring Froude Numbers
Unlock Audio Lesson
Now, let’s discuss the Froude number, which is crucial in identifying flow regimes. It is defined as the ratio of the flow velocity to the speed of the surface wave.
What categories does the Froude number help us classify?
Great question! We classify flows as subcritical when Fr is less than 1, critical at 1, and supercritical when it's greater than 1.
What happens during a transition from supercritical to subcritical flows?
That’s where hydraulic jumps occur! Let's track how energy changes in this process.
How do we calculate the flow velocity for the Froude number?
You use the equation: Fr = v / √(gy), where v is flow velocity, g is gravity, and y is flow depth.
In summary, the Froude number is a significant tool for classifying flow conditions and analyzing behavior during hydraulic jumps.
Hydraulic Jumps and Their Implications
Unlock Audio Lesson

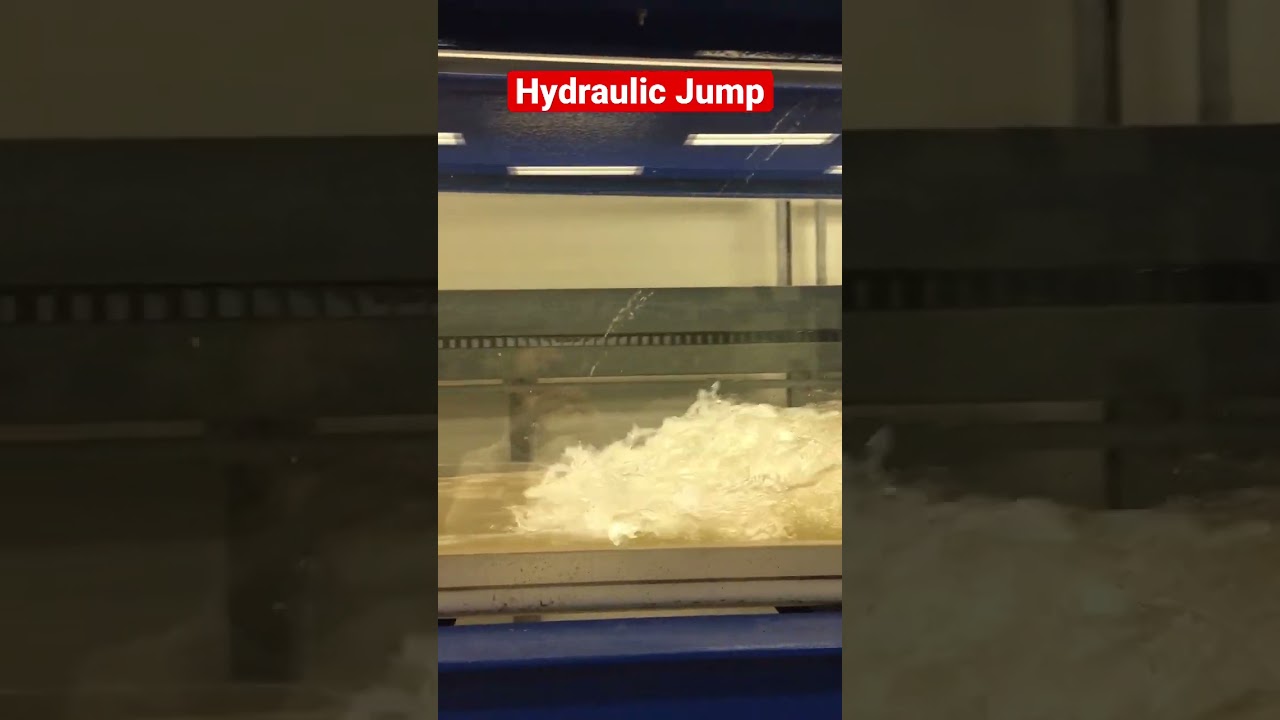

Let’s focus on hydraulic jumps now. A hydraulic jump occurs when supercritical flow transitions to subcritical flow, often resulting in energy loss.
What are the consequences of these energy losses?
Energy losses can lead to turbulence and affect the performance of hydraulic structures.
Is it possible to design channels to minimize these losses?
Absolutely! By optimizing channel shape and slope, we can design effective hydraulic structures.
Can you give examples of channel shapes?
Channels can be rectangular, trapezoidal, or even circular, depending on the application!
In summary, understanding hydraulic jumps is vital in designing efficient hydraulic systems and predicting energy losses.
Optimal Hydraulic Cross Sections
Unlock Audio Lesson
Finally, let’s discuss the best hydraulic cross sections. These are designed for maximum efficiency and minimal construction costs.
What shapes are commonly considered for these cross sections?
Common shapes include rectangular and trapezoidal sections, each with its advantages depending on the application.
How do we determine the best shape in practice?
It involves analyzing the hydraulic radius, perimeter, and velocities, ensuring we minimize energy losses while maintaining flow capacity.
Does preserving the hydraulic radius affect overall flow efficiency?
Yes! The hydraulic radius greatly influences flow velocity, making it vital to design for optimal values.
To summarize, selecting the best hydraulic cross section is key to achieving efficient open channel flow, maximizing velocity while minimizing costs.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the principles of open channel flow are explored, emphasizing specific energy dynamics, the phenomenon of hydraulic jumps, and the design considerations for canal structures to minimize energy loss while maximizing flow capacity.
Detailed
Introduction to Open Channel Flow
This section explores the fundamental concepts of open channel flow, specifically addressing the conservation of mass and energy in fluid dynamics. We simplify the flow conditions to one-dimensional, incompressible, and steady flow, facilitating our understanding of flow depth variations and velocity changes within open channels.
Key topics covered include:
1. Specific Energy: Defined as the total mechanical energy of the fluid per unit weight, we investigate how specific energy is graphically represented in relation to flow depth and how it varies with flow conditions.
2. Froude Number: A dimensionless number indicating flow regime: subcritical (Fr < 1), critical (Fr = 1), and supercritical (Fr > 1). Understanding this number is critical to analyzing flow behavior, especially in hydraulic structures.
3. Hydraulic Jumps: The transition between supercritical and subcritical flows that cause energy losses and turbulence, significant for their implications in engineering designs.
4. Optimal Hydraulic Cross Sections: The best designs for channels that minimize construction costs while maximizing flow efficiency and stability, including rectangular and trapezoidal sections.
Thus, the section sets a foundation for understanding open channel flows and their implications in civil engineering applications.
Youtube Videos
![Open Channel Flow - 6 [Flow Area A, Wetted Perimeter P Hydraulic Radius R, and Hydraulic Depth D]](https://img.youtube.com/vi/lyecuNbxlAs/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Fundamentals of Open Channel Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Good morning all of you. Today let us discuss on open channel flow. This is the last class on open channel flow. As we discuss about the specific energy and today we will solve a few problems as well as we will discuss about hydraulic jump and the best hydraulic cross sections what is required for designing a canal structures.
Detailed Explanation
Open channel flow refers to the flow of fluids within a conduit that is open to the atmosphere. Unlike pipes, where the flow is pressurized, open channels use gravity to move water. This section introduces the topic and outlines the key concepts, such as specific energy, hydraulic jumps, and the design of channel structures. Today’s discussion will emphasize practical applications and problem-solving techniques.
Examples & Analogies
Imagine a river flowing down a hill—this is a natural example of open channel flow, where gravity pulls the water downward. Engineers study this flow to create man-made channels like ditches and canals to manage water flow efficiently, preventing flooding and ensuring proper irrigation.
Conservation Laws in Open Channel Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The basic concept what we use is we will talk about the conservations of mass and energy equations. So these two equations as we consider for the one-dimensional flow that is what we have simplified it one-dimensional incompressible okay steady flow.
Detailed Explanation
The fundamental principles of open channel flow rely on the conservation of mass (continuity) and the conservation of energy (Bernoulli's principle). In one-dimensional, steady flow, we can simplify the analysis because the fluid properties and velocities primarily change in one direction. This simplification helps engineers design channels more efficiently.
Examples & Analogies
Think of a water slide. The water must maintain a constant flow rate down the slide, illustrating the conservation of mass. As the slide gets narrower, the water speeds up, showing the conservation of energy—just like how energy transformations occur when fluid moves through a channel.
Force Components in Open Channel Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
But when you simplified it, the flow is one dimensional, incompressible and the steady flow. So that is the reasons we have tried to look at the basic idea to know it, the flow depth variations in open channels, the velocity variations, how the velocity changes it, how much of energy losses, okay. losses is happening it because of the flow and mostly it is governed by the gravity forces and the frictional forces.
Detailed Explanation
In open channel flow, the primary forces acting on the water are gravitational forces (pulling the water downhill) and frictional forces (resisting the flow as water moves along the channel). As the depth of flow changes, these forces affect the velocity of the water. Understanding these forces helps predict how water behaves in various scenarios.
Examples & Analogies
Picture a river that flows faster on a steep slope (where gravity is stronger) and slows down when it encounters rocks or mud (where there’s more friction). This shows how different forces interact in open channel flow.
Understanding Specific Energy and Critical Flow Conditions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
As we discuss about the specific energy and the critical depth, the same concept we will talk about and more details I will today talk how we can use a specific energy which is a graphical representations of energy versus the flow depth of a channel cross section.
Detailed Explanation
Specific energy refers to the total energy of the fluid per unit weight and is influenced by its depth and velocity. A crucial point in open channel flow is 'critical flow' which occurs when the specific energy is at a minimum. Understanding these concepts is important for predicting flow behavior and designing efficient channels.
Examples & Analogies
Consider a fountain that shoots water into the air. The energy from the pump creates specific energy, and if we adjust the nozzle to control the height of the water, we can visualize how the flow depth and energy interact—like finding the perfect balance of pressure to achieve the desired fountain height.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Specific Energy: Total mechanical energy per unit weight critical for open channel flow analysis.
-
Froude Number: Dimensionless value classifying flow into subcritical, critical, and supercritical.
-
Hydraulic Jumps: Energy loss phenomenon during transitions between flow regimes.
-
Optimal Hydraulic Cross Sections: Best channel designs to minimize costs and maximize efficiency.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example 1: Calculating specific energy for a channel with varying flow depth to demonstrate how energy changes.
-
Example 2: Using Froude numbers to determine the nature of flow and predict hydraulic jumps in a given channel.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Specific energy’s key, in flow, you see; as depth does grow, energy will flow.
📖 Fascinating Stories
-
Imagine a river where the water flow is shallow, as it gets deeper the energy races like a sprightly fellow. It slows down when it meets obstructions, like rocks, and jumps back up when it can flow more freely, without blocks.
🧠 Other Memory Gems
-
To remember the Froude number, think 'Funky Rivers Go' (F=V/sqrt(g*y)).
🎯 Super Acronyms
FOLD - Flow, Open, Loss, Depth; to remember the critical elements of open channel flow.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Specific Energy
Definition:
The total mechanical energy of fluid per unit weight, critical in open channel flow analysis.
-
Term: Froude Number
Definition:
A dimensionless number defining flow regime; subcritical (Fr < 1), critical (Fr = 1), supercritical (Fr > 1).
-
Term: Hydraulic Jump
Definition:
The abrupt transition from supercritical to subcritical flow resulting in energy loss and turbulence.
-
Term: Optimal Hydraulic Cross Sections
Definition:
The best channel shapes designed to minimize energy loss and construction costs.
-
Term: Hydraulic Radius
Definition:
The ratio of a channel's cross-sectional area to its wetted perimeter; critical in determining flow efficiency.
