12.3.2 - Factors Affecting Rutting
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Rutting
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we’re discussing rutting in pavements. Rutting is the permanent deformation that occurs in wheel paths due to repeated loading. Can anyone tell me what might cause rutting?
Is it mainly due to traffic loads?
Great point, traffic loads definitely play a crucial role. However, the characteristics of the materials used also significantly affect rutting. Let's explore some specific factors. For example, what comes to mind when we discuss the type of binder?
Different types of binders might offer different resistance to deformation?
Exactly! The type and grade of the binder can greatly influence a mix's susceptibility to rutting.
Remember the acronym 'B.A.C.T.' to recall the major factors: Binder type, Aggregate gradation, Compaction quality, and Temperature.
What about the thickness of the pavement?
Excellent question! Pavement thickness also plays a role by supporting and distributing loads.
To summarize, many factors affect rutting including binder type, aggregate characteristics, compaction quality, temperature, and thickness.
Binder Types
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's dive deeper into binder types. What do you know about polymer-modified binders?
They are meant to improve elasticity and performance under load, right?
That's correct! Polymer-modified binders can significantly reduce rutting potential by enhancing the overall mechanical properties of the mix.
What other types of binders are there?
There are traditional asphalt binders and other modified types, such as crumb rubber and emulsions. Each varies in performance.
Remember, binders with higher viscosity tend to perform better under high temperature conditions which helps minimize rutting.
Let’s recap: different binder types, specifically polymer-modified vs. traditional, can significantly affect rutting resistance.
Aggregate Properties
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, how do aggregate properties influence rutting?
Well, if the aggregates are not angular or of poor gradation, it might cause issues!
Exactly! The gradation and angularity of aggregates determine how well they interlock and provide stability. Do you think a well-graded mix is beneficial?
Yes! Proper gradation means better stability and load distribution!
Right! A well-graded aggregate can enhance the compactness of the mix. Let’s put this together with what we learned about binders.
In summary, both binder type and aggregate properties play crucial roles in rutting resistance.
Pavement Temperature and Thickness
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s discuss pavement temperature and thickness. How does temperature affect rutting?
Higher temperatures make the pavement more vulnerable to deformation, right?
Exactly! Higher temperatures reduce the stiffness of the mix, facilitating deformation. And thickness?
Thicker pavements help distribute loads better to resist rutting.
You've got it! When designing pavements, both the thickness and temperature are key considerations.
To conclude, remember the full spectrum of factors—binder type, aggregate properties, compaction quality, temperature, and thickness impact rutting in pavements.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section discusses the key factors affecting rutting in bituminous mixes. It highlights the significance of binder type, aggregate gradation, compaction quality, pavement temperature, and thickness in influencing the performance and durability of flexible pavements.
Detailed
Factors Affecting Rutting

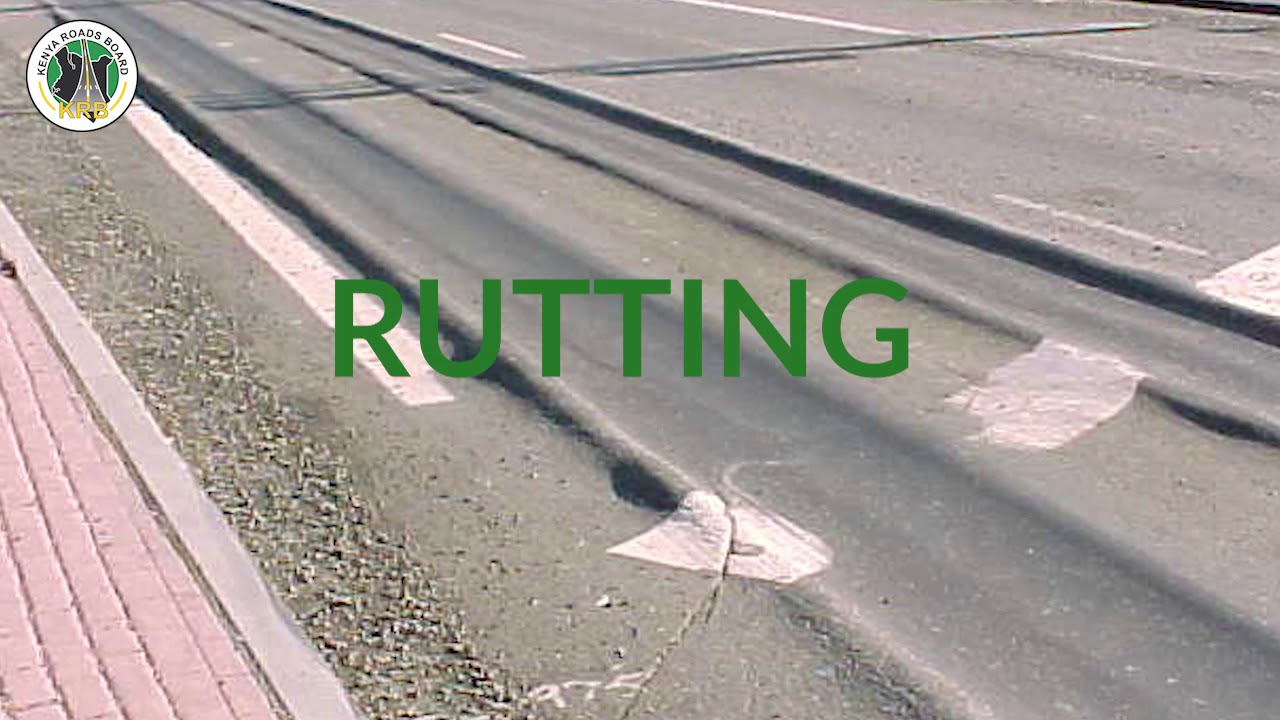

Rutting refers to the permanent longitudinal depressions that develop in pavement wheel paths due to accumulated deformation under repeated loads. Understanding the factors affecting rutting is crucial for pavement design and performance, as it directly impacts serviceability and longevity.
Key Factors:
- Binder Type and Grade: Different binder types (e.g., polymer-modified binders) offer varying degrees of resistance to rutting.
- Aggregate Gradation and Angularity: The way aggregates are mixed and their shape can significantly influence the stability and strength of the bituminous mix.
- Compaction Quality: Properly compacted mixes are essential for minimizing voids and maximizing load transfer, thus reducing rutting.
- Pavement Temperature: Higher temperatures can reduce mix stiffness, making it more susceptible to deformation.
- Pavement Thickness: Thicker pavements can distribute loads more effectively, thereby reducing the risk of rutting.
This section emphasizes the interplay among these factors to enhance the performance of flexible pavements.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Binder Type and Grade
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Binder type and grade.
Detailed Explanation
The type and grade of the binder used in bituminous mixes play a crucial role in determining how well the pavement can withstand the stresses imposed by traffic across varying temperatures. Different binder types, such as polymer-modified asphalt, can enhance resistance to deformation. The grade of the binder, denoting its viscosity or hardness at certain temperatures, also affects its behavior under load. A higher grade binder tends to be stiffer, which can improve rutting resistance, especially in higher temperature conditions where softer binders would deform more easily.
Examples & Analogies
Think of the binder like the glue in a household project. If you use a strong, heat-resistant glue (akin to a high-grade binder), your project will hold together better under pressure and heat. Conversely, using a weak or low-quality glue (like a low-grade binder) would result in your project falling apart as soon as it gets warm or stressed.
Aggregate Gradation and Angularity
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Aggregate gradation and angularity.
Detailed Explanation
The gradation and shape of the aggregates, which are the solid particles in the mix, significantly influence rutting. Gradation refers to the distribution of different sizes of aggregates in the mix. A well-graded mixture, containing various sizes, can lead to better packing and increased strength, thus reducing deformation. Angular aggregates provide interlocking, enhancing the stability and resistance to rutting, compared to rounded aggregates which may shift under load.
Examples & Analogies
Imagine filling a jar with different sizes of stones. If you only use large stones, they won’t fit well together, leaving gaps and making the structure weak. But if you fill it with a mix of large, medium, and small stones, they pack together tightly and provide a solid foundation. This illustrates how a better mixture of sizes in the aggregate leads to stronger, more stable pavements.
Compaction Quality
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Compaction quality.
Detailed Explanation
Compaction quality refers to how well the bituminous mix has been compacted during installation. Proper compaction removes air voids and ensures that aggregates are tightly packed together. Inadequate compaction can lead to weaknesses within the pavement structure, making it more prone to deformation, and thus increasing susceptibility to rutting. Good compaction enhances the overall density and strength of the pavement, ensuring that it performs better under traffic loads.
Examples & Analogies
Consider a sponge and the way it absorbs water. If you lightly press the sponge, it stays puffy and can absorb more liquid (similar to poorly compacted pavement with many air voids). However, if you press it firmly, it becomes dense and won't absorb as much water (like well-compacted pavement). Hence, proper compaction minimizes the risk of deformation under stress.
Pavement Temperature and Thickness
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Pavement temperature and thickness.
Detailed Explanation
The temperature of the pavement and its thickness are critical factors affecting rutting. Higher temperatures can soften the bituminous binder, making it more susceptible to deformation under traffic loads. Thicker pavements can distribute loads over a larger area, reducing pressure on the underlying materials and improving resistance to rutting. Therefore, correctly designing for temperature and ensuring adequate thickness can significantly improve the longevity and performance of the pavement.
Examples & Analogies
Think of how taffy changes when heated. At room temperature, it’s firm and can hold its shape. But if you heat it up, it becomes soft and pliable, easily changing shape when pressure is applied. Similarly, a thicker asphalt layer can better hold up under heavy traffic, like an insulating layer keeping the softness of taffy at bay. A well-designed pavement takes both temperature and thickness into account to resist deformation.
Key Concepts
-
Binder Type: The type of binder influences rutting resistance, with modifiers like polymers enhancing performance.
-
Aggregate Gradation: Proper gradation promotes stability and resistance against deformation.
-
Compaction Quality: Effective compaction improves mix density and load support.
-
Temperature: Higher temperatures reduce stiffness, leading to increased susceptibility to rutting.
-
Pavement Thickness: Thicker layers distribute loads better, helping mitigate rutting.
Examples & Applications
Polymer-modified asphalt binders demonstrated reduced rutting in comparison to conventional asphalt under heavy traffic conditions.
Asphalt mixes with well-graded aggregates showed improved stability and minimized deformation in wheel paths.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Binder, aggregate, compaction, true; thickness and temperature, all affect how they do.
Stories
Imagine a busy road where the sun heats the asphalt. The high traffic compresses the layers—if the binder isn’t strong enough, ruts appear as vehicles pass.
Memory Tools
To remember the main factors: 'B.A.C.T.' - Binder, Aggregate, Compaction, Temperature.
Acronyms
'R.A.C.T.' stands for the factors affecting rutting
Rutting itself
Aggregate characteristics
Compaction quality
and Temperature.
Flash Cards
Glossary
- Rutting
Permanent longitudinal depression in wheel paths due to accumulated deformation under repeated loads.
- Binder
A substance used to bind aggregates in bituminous mixes, determining the mix's characteristics.
- Aggregate gradation
Distribution of particle sizes in a given aggregate sample.
- Compaction
The process of densifying a bituminous mix to enhance strength and stability.
- Temperature susceptibility
The tendency of a bituminous mix to change its properties with temperature variations.
