21.2.2 - Types of Matrices
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Matrices
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're diving into the world of matrices. Can anyone tell me what a matrix is?
Is it just a big array of numbers?
Exactly! A matrix is a rectangular array of numbers arranged in rows and columns. Now, can anyone name a type of matrix?
I think there's a row matrix!
Right! A row matrix has only one row. What about a matrix with only one column?
That's a column matrix.
Great job! Let's remember that: Row is across, and Column is down. If we think of 'row' like a line of people waiting, and 'column' like a stack of papers, it helps visualize! Any other types we should discuss today?
Special Matrices
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s talk about some special matrices. Who can tell me about the identity matrix?
It's the matrix where all diagonal elements are one, right?
Correct! It's like the number 1 for multiplication. What about a diagonal matrix?
In a diagonal matrix, the non-zero entries are only on the main diagonal.
Perfect! Can anyone explain why knowing these types is important?
We need to know them to solve equations and understand their properties!
Singular and Non-Singular Matrices
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s focus on singular and non-singular matrices. Who can explain what a singular matrix is?
A singular matrix is one that doesn’t have an inverse, right?
Exactly! It has a determinant of zero. What about a non-singular matrix?
It's the opposite, with a non-zero determinant!
Great! Remember: you can’t divide by zero; that’s why singular matrices are problematic when solving linear equations. Can anyone think of examples?
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section describes several types of matrices, including row, column, zero, diagonal, scalar, identity, symmetric, skew-symmetric, triangular, singular, and non-singular matrices, explaining their definitions and significance in linear algebra.
Detailed
Types of Matrices
In linear algebra, matrices are pivotal structures that simplify calculations and represent data. This section categorizes matrices into various types, each defined by specific properties.

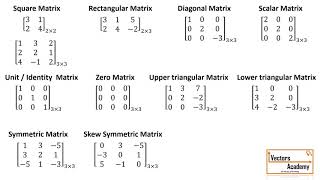

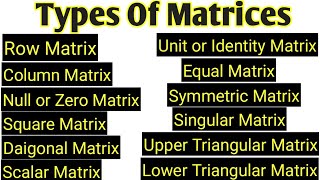

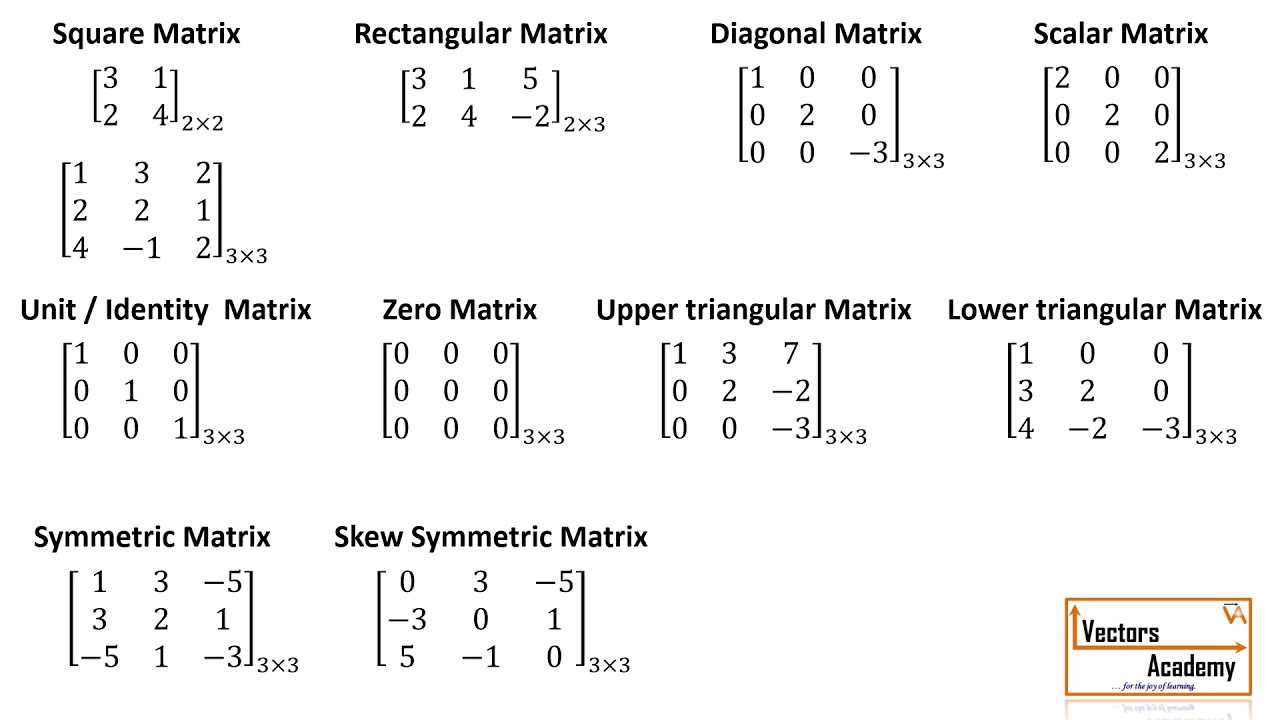

Types of Matrices:
- Row Matrix: A matrix consisting of a single row.
- Column Matrix: A matrix consisting of a single column.
- Zero or Null Matrix: A matrix where all elements are zero, denoted as 0.
- Diagonal Matrix: A square matrix where all non-zero elements are positioned along the principal diagonal.
- Scalar Matrix: A diagonal matrix with identical elements along its diagonal.
- Identity Matrix (I): A special type of diagonal matrix where all diagonal elements equal one, serving as the multiplicative identity in matrix operations.
- Symmetric Matrix: A matrix that satisfies the condition A = Aᵀ, meaning it is equal to its transpose.
- Skew-Symmetric Matrix: A matrix where A = -Aᵀ, indicating its transpose equals its negative.
- Upper/Lower Triangular Matrix: A matrix that has all elements above (upper) or below (lower) the main diagonal equal to zero.
- Singular Matrix: A square matrix that does not have an inverse, indicated by a determinant of zero.
- Non-Singular Matrix: A square matrix with a non-zero determinant, allowing for an inverse.
Understanding these types is crucial for civil engineers and other professionals who frequently utilize matrices in computations and analyses.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Matrices
Chapter 1 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
A matrix is a rectangular array of numbers arranged in rows and columns.
Detailed Explanation
A matrix is essentially a way of organizing numbers in a table format, where they are arranged in a specific order — in rows and columns. For example, a matrix with 2 rows and 3 columns looks like this:
| 1 | 2 | 3 |
|---|---|---|
| 4 | 5 | 6 |
Here, the first row consists of numbers 1, 2, and 3, while the second row consists of 4, 5, and 6. This array can be used to represent various mathematical entities, such as systems of equations or transformations in space.
Examples & Analogies
Think of a matrix like a seating chart in a classroom where rows represent different tables and columns represent different seats at those tables. Each 'seat' (or matrix entry) can hold a specific piece of information, such as a student's name or a grade. Just as a seating chart helps organize students, matrices help organize numbers and data in mathematics.
Different Types of Matrices
Chapter 2 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Row Matrix: 1 row only.
• Column Matrix: 1 column only.
• Zero or Null Matrix: All elements are zero.
• Diagonal Matrix: Non-zero elements only on the principal diagonal.
• Scalar Matrix: Diagonal matrix with equal diagonal elements.
• Identity Matrix (I): Diagonal matrix with all diagonal elements as 1.
• Symmetric Matrix: A=AT
• Skew-Symmetric Matrix: A=−AT
• Upper/Lower Triangular Matrix: All elements below/above the diagonal are zero.
• Singular Matrix: Determinant is 0.
• Non-Singular Matrix: Determinant is not 0.
Detailed Explanation

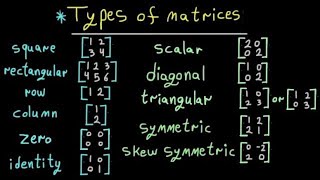

There are several types of matrices that are categorized based on their structure and properties:
- Row Matrix: Contains only one row. Example: [1, 2, 3].
- Column Matrix: Contains only one column. Example:
| 1 |
|---|
| 2 |
| 3 | - Zero or Null Matrix: All elements are zero, like [0, 0; 0, 0].
- Diagonal Matrix: Only has non-zero elements on the diagonal, such as [1, 0; 0, 2].
- Scalar Matrix: A diagonal matrix where all diagonal elements are the same, like [3, 0; 0, 3].
- Identity Matrix: A special case of a scalar matrix where all diagonal elements are 1, represented as [1, 0; 0, 1].
- Symmetric Matrix: A matrix that is equal to its transpose, meaning mirroring it over the diagonal leaves it unchanged, such as [1, 2; 2, 1].
- Skew-Symmetric Matrix: Mirrors to the negative, satisfying A=-AT, like [0, -2; 2, 0].
- Upper/Lower Triangular Matrix: Has all zeros either below (lower) or above (upper) the diagonal, like
Upper: [1, 2; 0, 3]
Lower: [4, 0; 5, 6]. - Singular Matrix: Has a determinant of 0, indicating it can't be inverted; like [1, 2; 2, 4].
- Non-Singular Matrix: Has a non-zero determinant; it can be inverted, such as [1, 2; 3, 4].
Examples & Analogies
Imagine you are organizing players in a sports team:
- A row matrix could represent the players' names in one row for a single game.
- A column matrix might be a list of player statistics in a single column.
- The zero matrix represents a team without players — all zeros!
- A diagonal matrix could symbolically represent players with specific roles, where only certain positions (like strikers) are filled.
- Just as different combinations of players can create a team with unique characteristics, different types of matrices have unique mathematical properties and roles in calculations.
Key Concepts
-
Row Matrix: A matrix with one row.
-
Column Matrix: A matrix with one column.
-
Zero Matrix: All elements are zero.
-
Diagonal Matrix: Non-zero elements on the main diagonal.
-
Identity Matrix: Special diagonal matrix with ones on the diagonal.
-
Singular Matrix: Determinant is zero, no inverse exists.
-
Non-Singular Matrix: Non-zero determinant, inverse exists.
Examples & Applications
A row matrix example is [2, 4, 6].
A column matrix example is [[3], [5], [7]].
An identity matrix example is [[1, 0], [0, 1]].
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
A row goes left to right, a column is a vertical sight.
Stories
Imagine a restaurant where each table (row) holds guests. A column would resemble a stack of food dishes reaching high.
Memory Tools
Remember SID: Symmetric, Identity, Diagonal for special matrices.
Acronyms
RZDSIS
Row
Zero
Diagonal
Scalar
Identity
Skew-Symmetric for matrix types.
Flash Cards
Glossary
- Row Matrix
A matrix consisting of a single row.
- Column Matrix
A matrix consisting of a single column.
- Zero or Null Matrix
A matrix where all elements are zero.
- Diagonal Matrix
A square matrix with non-zero elements only on the principal diagonal.
- Scalar Matrix
A diagonal matrix with equal diagonal elements.
- Identity Matrix
A diagonal matrix where all diagonal elements are 1.
- Symmetric Matrix
A matrix that is equal to its transpose.
- SkewSymmetric Matrix
A matrix where its transpose equals its negative.
- Upper and Lower Triangular Matrix
Matrices in which all entries above or below the main diagonal are zero, respectively.
- Singular Matrix
A matrix that has a determinant of zero and does not have an inverse.
- NonSingular Matrix
A matrix that has a non-zero determinant and has an inverse.
